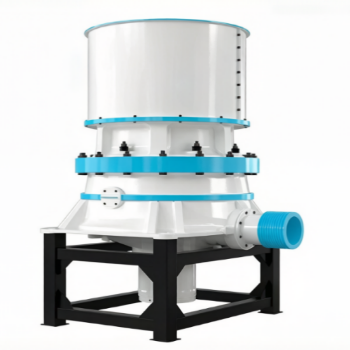

GP series single-cylinder hydraulic cone crusher adopts innovative single-cylinder hydraulic control system, which integrates hydraulic adjustment, overload protection and cavity clearing functions, and is suitable for medium and fine crushing operations. Equipped with heavy-duty spindle structure (600r/min swing times) and high-performance crushing cavity, the machine can handle feed size ≤560mm, realizing high capacity of 45-1200t/h, and the discharge size can be adjusted accurately from 6-41mm by hydraulic device. The standard intelligent automatic control system monitors the operation status in real time, and the maintenance efficiency is increased by 40% with the thin oil lubrication system and modularized design. Especially suitable for granite, basalt and other hard rock crushing, the power configuration covers 90-750kW, energy consumption is reduced by 25% compared with traditional models, meets CE, ISO certification standards, is a modernized stone production line of high efficiency and energy saving solutions.

Product Advantage:

✓High efficiency and energy saving

Laminated crushing technology reduces energy consumption by 25% and saves $20,000-40,000 annually under the same output. 600r/min high stroke rotational speed, the production capacity is increased by 40% compared with the traditional model, up to 1200t/h.

✓ Intelligent automation

Intelligent control system real-time monitoring (bearing temperature ±1℃ precision/vibration value <4mm/s warning),Hydraulic adjustment system to complete the adjustment of the discharge particle size in 3 minutes (stepless adjustment from 6-41mm)

✓ Maintenance revolution

Modularized design shortens the replacement time of core components by 60% (the main frame body can be dismantled in 4 hours). Thin oil lubrication system extends bearing life by 2.3 times and reduces annual maintenance cost by 40%.

✓Hard Rock Nemesis

Unique G-shape crushing cavity can handle materials with Mohs hardness class 8 (granite/basalt crushing ratio up to 1:6). Hydraulic overload protection system can withstand ≤300MPa instantaneous impact load.

✓Safety and Environmental Protection

CE certification system to ensure that the pulse dust removal interface to achieve dust emissions <20mg/m³. Fully enclosed structure makes the operation noise ≤85dB(A).

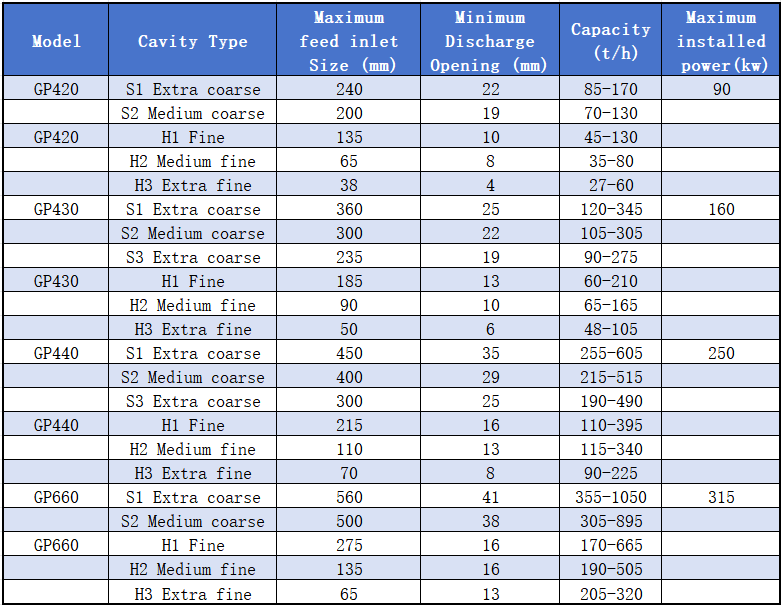

Specifications:
