✓Capacity: 75-520 t/h

✓Application: metallurgy, crushing, mining, road construction, bridges, industry, pulverizing, and other industries

✓Crushing material: suitable for processing materials of medium hardness, such as limestone, construction waste, and slag.

Product Advantage:

✓Stable equipment with higher efficiency

The unique three-chamber vortex structure allows for larger feed particle size, higher capacity, and better product particle shape. Reasonable configuration, smooth process, high production efficiency, and good product particle shape. The standard modular design of the cavity liners and toothed impact plates ensures strong interchangeability, higher utilization rate, and longer service life.

✓Hydraulic control offers flexible applications

Hydraulic drive controls track movement, equipment installation, and production operations, resulting in smoother transmission, stepless speed regulation, greater flexibility, and better controllability. Depending on different customer needs, various configurations are available, including full hydraulic and hydraulic + grid-connected power options, allowing for flexible combinations and cost control. The main equipment comes standard with a hydraulic opening and closing mechanism or is equipped with a dedicated lifting tool for replacing the hammer, offering flexible application and easy operation.

✓Diverse Equipment

Depending on the different processing needs of customers, the sand making production line can be configured in a variety of ways. It can be used as a single machine or in combination with multiple machines to achieve the combined production of crushing and screening functions. It can also be used in conjunction with other mobile crushing and screening stations.

✓Highly mobile and easy to relocate

This machine offers a variety of power drive options, providing high flexibility and maneuverability. No support legs or fixed foundations are required during operation. The complete set of equipment boasts strong performance, flexible and compact combinations, low site requirements, and the ability to operate anywhere. Its compact structural design, small turning radius, and convenient and quick entry and exit from the site facilitate easy relocation.

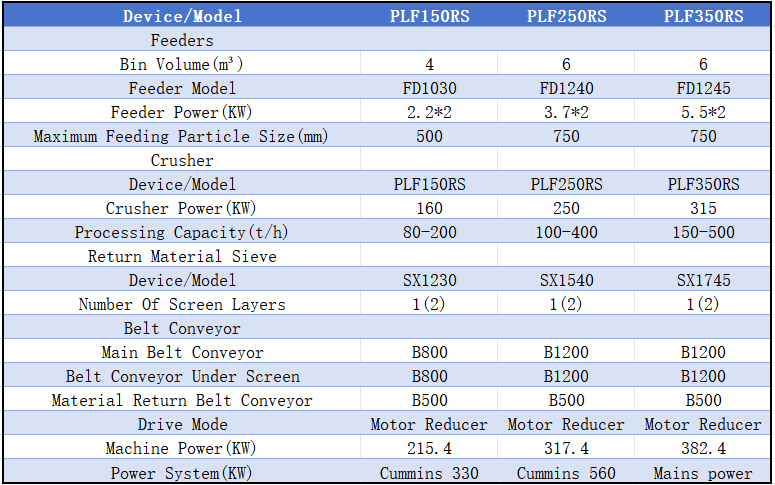

Specification:
