✓Capacity: 75-520 t/h

✓Application: metallurgy, crushing, mining, road construction, bridges, industry, pulverizing, and other industries

✓Crushing material: Suitable for crushing materials of medium or high hardness, such as graphite, granite, basalt, river pebbles, iron ore, etc.

Product Advantage:

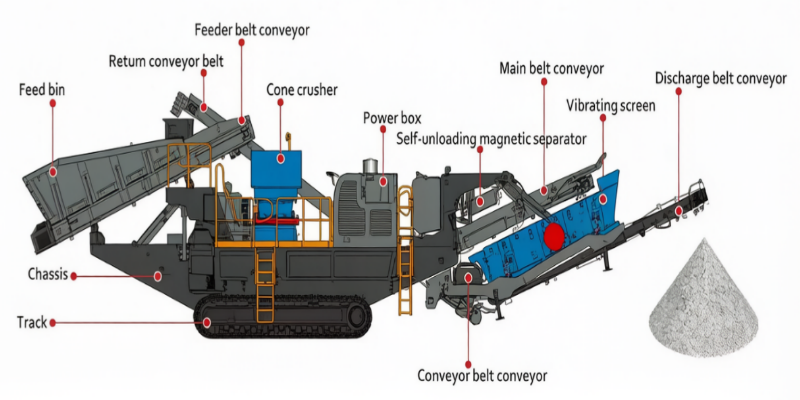

✓Integrated unit design, highly mobile

Strong overall performance, flexible and compact combination, low site requirements, and can operate anywhere. Compact structure, small turning radius, convenient and quick access to the site, and can be driven away immediately after use.

✓High efficiency and energy saving

Adopting advanced technology, high production efficiency, reducing raw material transportation links, and saving additional transportation costs. Lamination crushing principle, high crushing efficiency, good product particle shape, and large crushing ratio, up to 1:4 or even higher.

✓Diverse configurations

Depending on different customer processing needs, the sand making production line can be provided with diverse configurations, allowing for single-machine or multi-machine combination operation, realizing the integration of crushing and screening functions.

✓Automated system control

Utilizing an automatic control program to control the system process, the Relytec intelligent control panel is easy to operate; coupled with a wireless remote control, it can reduce auxiliary operators, greatly improving work efficiency and saving labor costs.

✓Technical assurance and excellent quality

High-quality materials are selected, the design structure is reasonable, and the technology is guaranteed. Each machine undergoes multiple layers of rigorous factory inspection to ensure its quality. High crushing efficiency, good product particle shape.

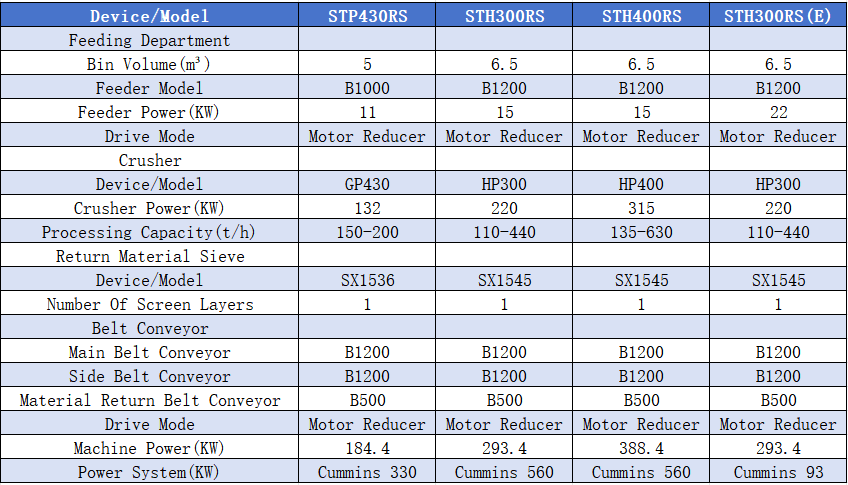

Specification:
